9.1. Requirements

For this lab we do not provide a step-by-step guide for the implementation. The goal is that you implement the required manifests yourself. However, we provide a sample solution in the next chapter. Your solution may vary from ours.

Basic Information

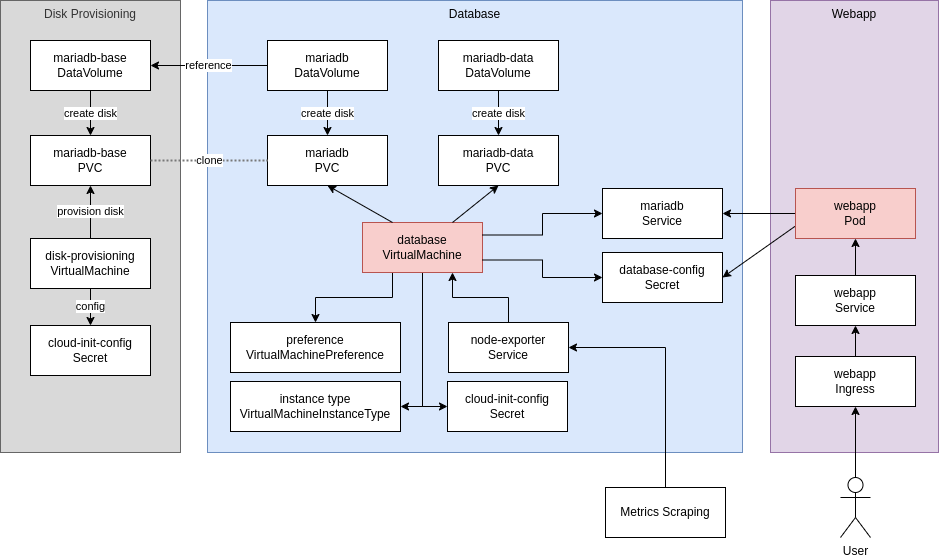

The goal of this super lab is to deploy a database and a web application connecting to this database. The database should be run within a KubeVirt virtual machine. We do provide the web application as container image.

The setup should fulfill the following requirements:

Namespace:

• Use the same namespace as for your previous labs (lab-<username>)

Virtual machine:

• Operating System: Fedora Cloud 43
  • Recommended image: quay.io/containerdisks/fedora:43
• Database: MariaDB
• Metrics Exporter: Node Exporter

Web application:

• Application: Python Example Web Application from acend.
  • Image: quay.io/acend/example-web-python:latest
• The webapp will listen on port 5000
• The connection to the database can be configured with the environment variable MYSQL_URI=mysql://user:password@hostname/database-name

Disk provisioning

To reduce the startup time of the database, we recommend to use a pre provisioned persistent disk. Pre-provision this generic database disk with the mariadb package and the setup for the node exporter. Use a provisioning virtual machine with cloud-init scripts to prepare the disk.

Runtime instances

The virtual machine running the mariadb instance should clone the pre-provisioned vm disk. Additionally, this instance should mount another empty 1Gi disk as data folder of the database. Use cloud-init to create and configure the database users, create the database, start the required services and do the basic virtual machine configuration. You are encouraged to define and use VirtualMachineInstanceType and VirtualMachinePreference to manage resource usage and preferences.

You should use a secret to store the database details. All components (database vm and webapp) should have health-checks configured.

Required details

Database users and password

• database-name: acend_exampledb
• database-user: acend_user
• database-password: mysqlpassword
• database-root-password: mysqlrootpassword

Advanced information

Disk provisioning

• Use a DataVolume to download the fedora image quay.io/containerdisks/fedora:43 to a vm disk.
  • Use this disk as the disk for the provisioning virtual machine
• Your virtual machine should use the runStrategy: RerunOnFailure
• Cloud-Init script should:
  • Install mariadb-server package
  • Create a system user node_exporter with a group node_exporter and the login shell /bin/nologin
  • Download node-exporter from https://github.com/prometheus/node_exporter/releases/download/v1.8.2/node_exporter-1.8.2.linux-amd64.tar.gz
    • Create a systemd service file to easily start the node exporter. You can find some details here .
    • Configure the node exporter to run on port 9100.
  • Do some cleanup
    • Remove the ssh host files /etc/ssh/ssh_host_*
    • Remove the /var/lib/cloud/instances directory to re-run cloud-init
  • Shutdown the virtual machine

You most likely need a cloud-init script like:

#cloud-config-archive
- type: "text/cloud-config"
  content: |
    packages:
        [...]
    users:
        [...]
    write_files:
        [...]
- type: "text/x-shellscript"
  content: |
    #!/bin/sh
    # install node_exporter
    # [...]
    # cleanup
    # [...]
    shutdown now

curl -fsSL https://github.com/prometheus/node_exporter/releases/download/v1.8.2/node_exporter-1.8.2.linux-amd64.tar.gz | \
  sudo tar -zxvf - -C /usr/local/bin --strip-components=1 node_exporter-1.8.2.linux-amd64/node_exporter && \
  sudo chown node_exporter:node_exporter /usr/local/bin/node_exporter

[Unit]
Description=Node Exporter
After=network.target

[Service]
User=node_exporter
Group=node_exporter
# Fallback when environment file does not exist
Environment=OPTIONS=
EnvironmentFile=-/etc/sysconfig/node_exporter
ExecStart=/usr/local/bin/node_exporter $OPTIONS

[Install]
WantedBy=multi-user.target

Database virtual machine

• Use a DataVolume to clone the provisioned disk and use another DataVolume to create an empty disk.
  • Use the cloned disk as the root disk for the database virtual machine
  • Mount the additional disk on /var/lib/mysql
• Your virtual machine should use the runStrategy: RerunOnFailure
• Create a secret containing
  • The database details
  • An init script for your mariadb database
• Cloud-Init script should:
  • Set password for fedora user
  • Mount secret with mysql details using virtiofs
  • Mount additional disk for the database data
  • Enable and start the mariadb and node exporter service
  • Load the database init script
  • Create a kubernetes Service for the node exporter and mariadb
• The easiest health checks are tcp probes against the mariadb port

You most likely need a cloud-init script like:

#cloud-config
password:
chpasswd:
bootcmd:
  [...]
mounts:
  [...]
runcmd:
  [...]

Be aware of the runtime order of the cloud-init modules and place the commands accordingly. By default, the mounted disks are accessible by root. You may fix the permissions for the mysql user:

sudo chown mysql:mysql /var/lib/mysql
sudo chmod 0751 /var/lib/mysql

ALTER USER 'root'@'localhost' IDENTIFIED BY 'mysqlrootpassword';
CREATE DATABASE acend_exampledb;
CREATE USER 'acend_user'@'%' identified by 'mysqlpassword';
GRANT ALL PRIVILEGES ON acend_exampledb.* TO 'acend_user'@'%';
FLUSH PRIVILEGES;

kubectl create secret generic lab09-mariadb \
  --from-literal=database-name=acend_exampledb \
  --from-literal=database-password=mysqlpassword \
  --from-literal=database-root-password=mysqlrootpassword \
  --from-literal=database-user=acend_user \
  --from-file=init.sql=init.sql

Web application

• Create a deployment for the web application
• In the deployment you need to set environment variable MYSQL_URI
  • Use the values (database-user, database-password, database-name) from the secret created above.
• The webapp has a /health rest endpoint to be used for health checks
• Create a service targeting port 5000 of the deployed webapp.
• Create an ingress pointing to the service of your webapp

Your ingress will be similar to:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  [...]
spec:
  rules:
    - host: webapp-lab-<username>.<appdomain>
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                [...]
  tls:
  - hosts:
    - webapp-lab-<username>.<appdomain>

apiVersion: apps/v1
kind: Deployment
metadata:
  [...]
spec:
  [...]
  template:
    [...]
    spec:
      containers:
        - image: quay.io/acend/example-web-python:latest
          name: lab09-webapp
          [...]
          env:
          - name: MYSQL_DATABASE_NAME
            valueFrom:
              secretKeyRef:
                key: database-name
                name: lab09-mariadb
          - name: MYSQL_DATABASE_PASSWORD
            valueFrom:
              secretKeyRef:
                key: database-password
                name: lab09-mariadb
          - name: MYSQL_DATABASE_ROOT_PASSWORD
            valueFrom:
              secretKeyRef:
                key: database-root-password
                name: lab09-mariadb
          - name: MYSQL_DATABASE_USER
            valueFrom:
              secretKeyRef:
                key: database-user
                name: lab09-mariadb
          - name: MYSQL_URI
            value: mysql://$(MYSQL_DATABASE_USER):$(MYSQL_DATABASE_PASSWORD)@lab09-mariadb/$(MYSQL_DATABASE_NAME)
